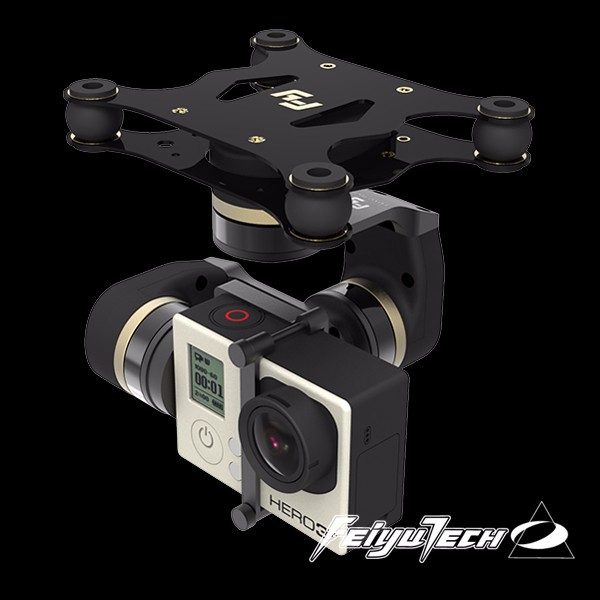

FeiYu new 3 axis gimbal for aircraft / FY-Mini 3D
Brushless gimbal for aircraft
**In Stock Now Shipping**
**GoPro Hero NOT included**
Introduction
MiNi 3D 3-Axis Brushless Gimbal ( For aircraft ) suitable for GoPro4,GoPro3+,GoPro3 or cameras with similar size. Can be easily
mounted in fixed wing, multirotor, helicopter for aerial photography, and can work independently only need power supply.
You can assemble the gimbal properly according to the drawing, and then install the video camera on it.
There
is no need to set up and adjust the parameter. For the first use, power
on the Gimbal, and then keep it static for a while,after its reset, the gimbal will be in a level position automatically. Then you can use it normally.
Mode Selection Instructions
When connect to RC receiver it can switch in 3 working modes, also can control the heading and pitch via the RC receiver.
Heading Follow Mode
Camera Pitch and Roll angles remain constant, heading follows the nose position,pitch can be control by RC .
Heading And Pitch Follow Mode
Camera Roll angle remains constant. Heading follow
the nose position and Pitch follow the elevation of the aircreft.
Heading Lock Mode
Heading, Pitch and Roll are all locked to point at one position.
Heading and pitch can be control by RC .
Initialize the Gimbal
Keep the gimbal motionless, then power on, hold the gimbal steady and it will initialize automatically.
Once complete the camera will be level with the horizon in pitch and roll angles and it will be in Heading Follow Mode.
In addition to initial power on,the Gimbal needs to be initialized whenever the following situations
appear:
1. After power on, the angle of pitch is not level with the horizon line.
2. After power on, the angle of roll is not parallel with the horizon line.
3. When the gimbal is in heading lock, the angle of heading moves frequently (heading is not stationary)
Includes:
- gimbal body
- gimbal parts
WARNING!
GoPro Hero 3 or Hero 3+ camera must be installed before supplying power to the Gimbal. Failure to do so
will result in damage to the gimbal motors.
